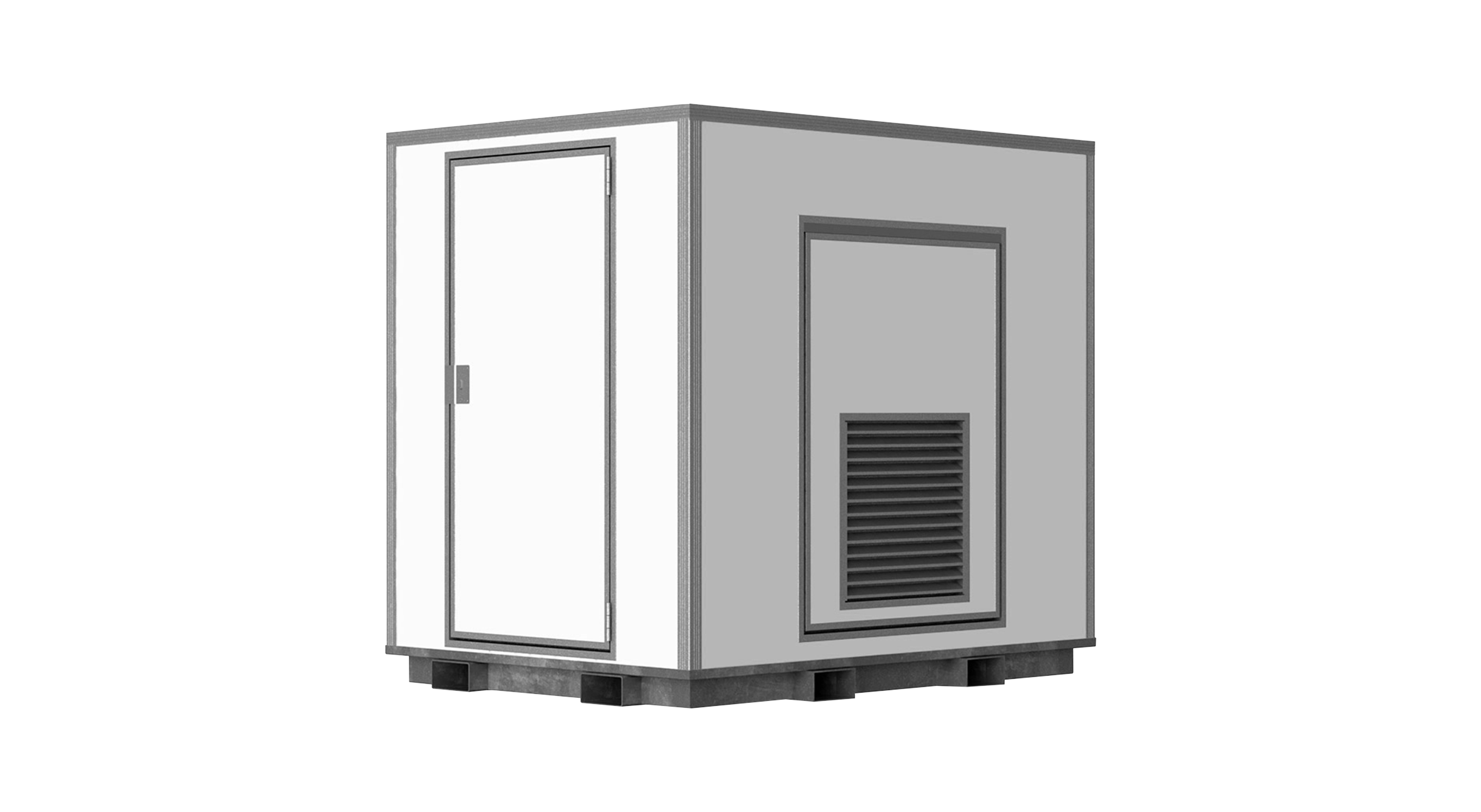

EventCubes Pump Station
Built to Power Large-Scale Events

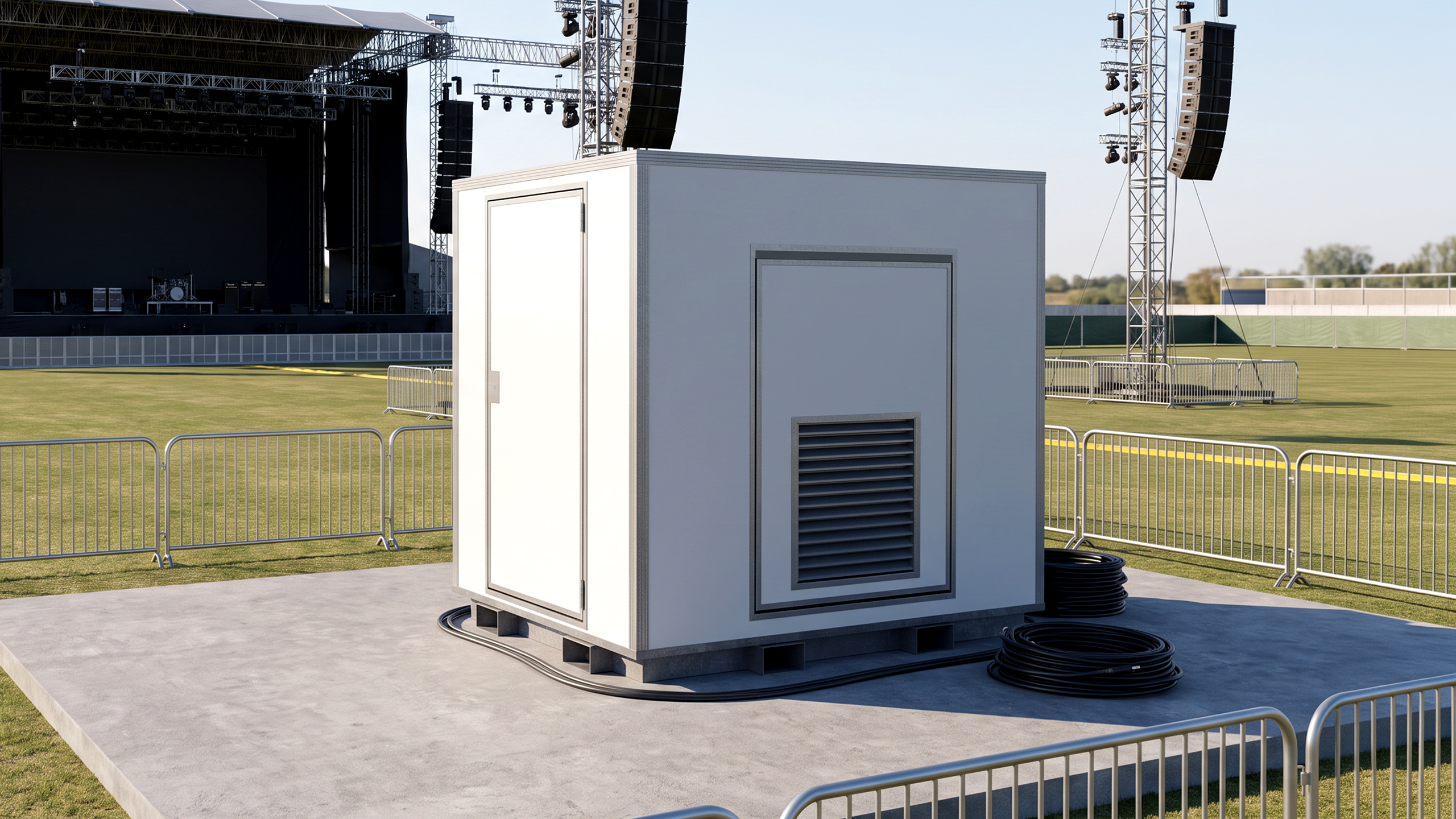

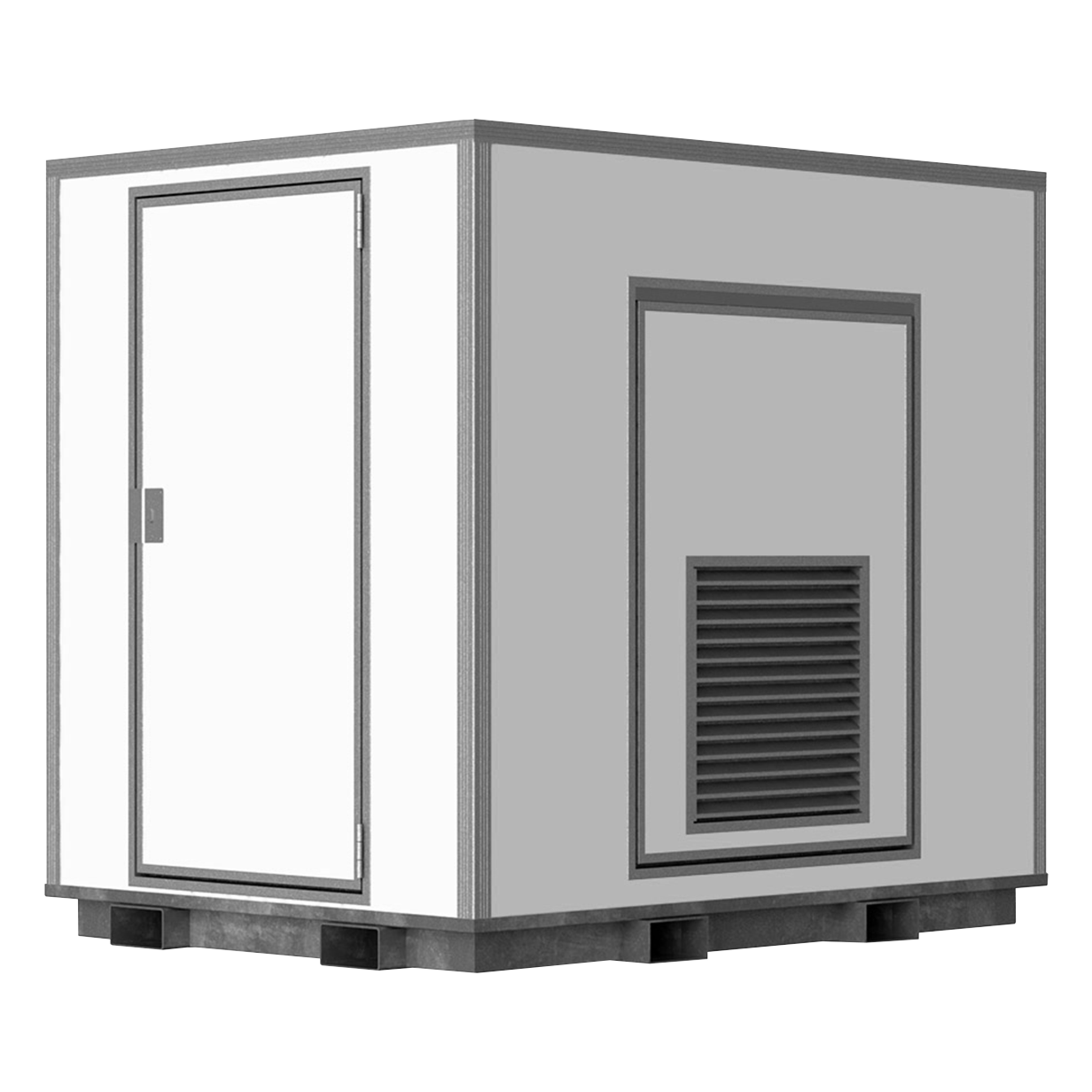

Designed for flexibility and performance, the EventCubes Pump Station enables modular restroom layouts with fast plug-and-play installation. Centralized utilities and maintenance reduce downtime, improve operational efficiency, and allow rental operators to scale sanitation solutions for events of any size.

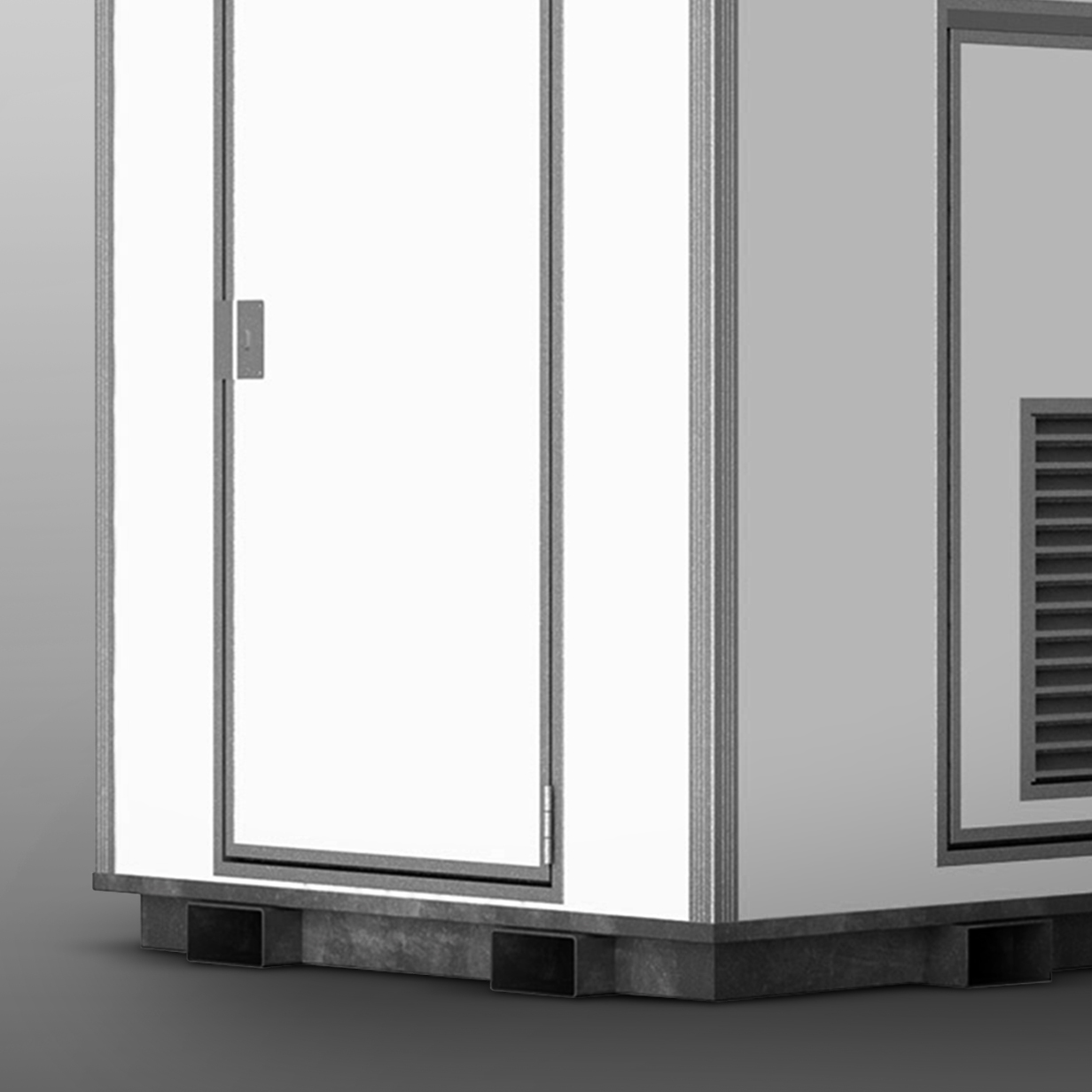

EventCubes were developed using the expertise we have gathered from over 20 years of supplying high end trailers and cabins for the construction and event industry. We use premium components and materials to ensure that our products are exceedingly reliable with an exceptionally long lifetime. As the Nordics' leading manufacturer, we are able to put some of the best products on the market direct from suppliers. A direct relationship with our suppliers means that we can work closely with them to develop parts that optimize functionality, design and durability.

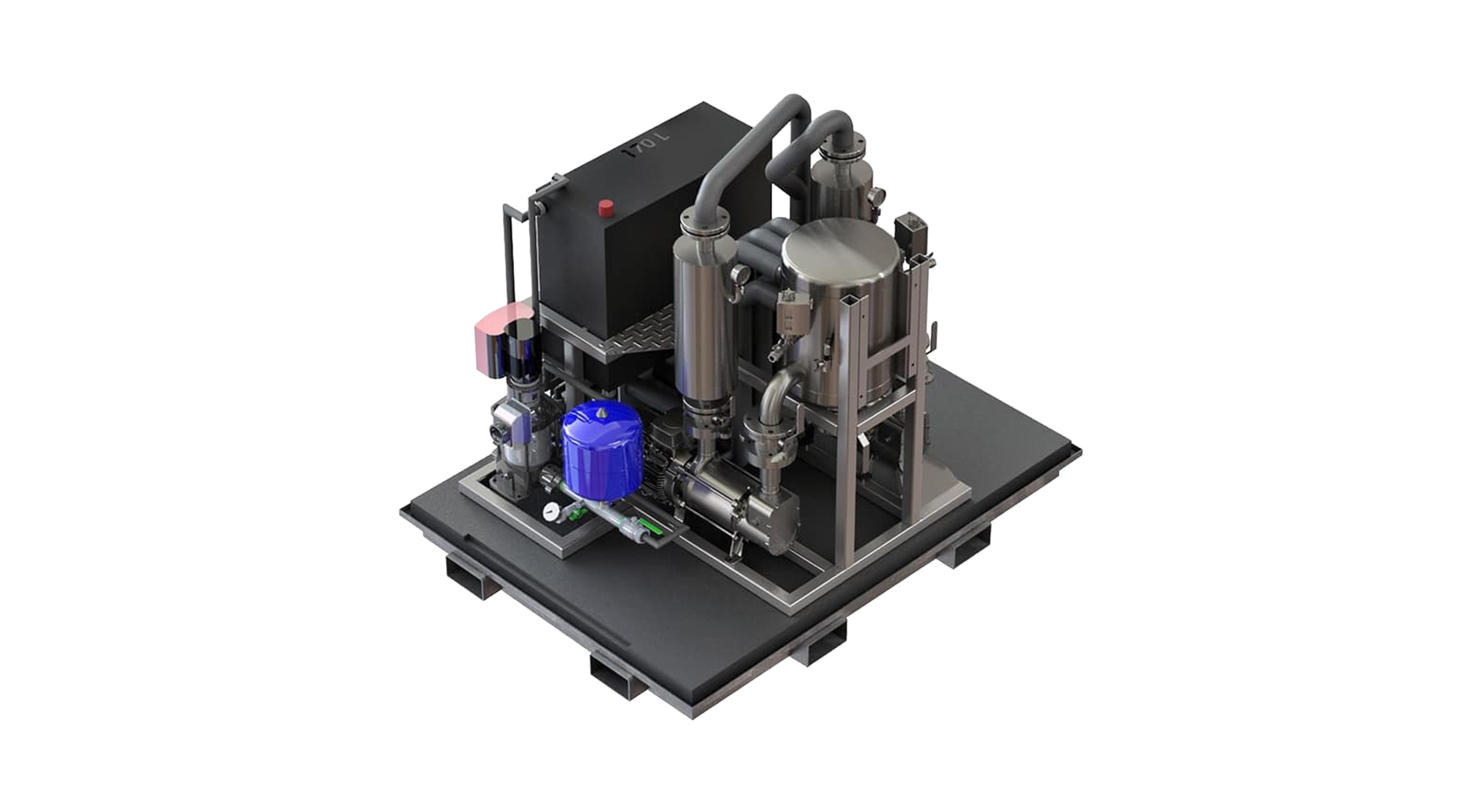

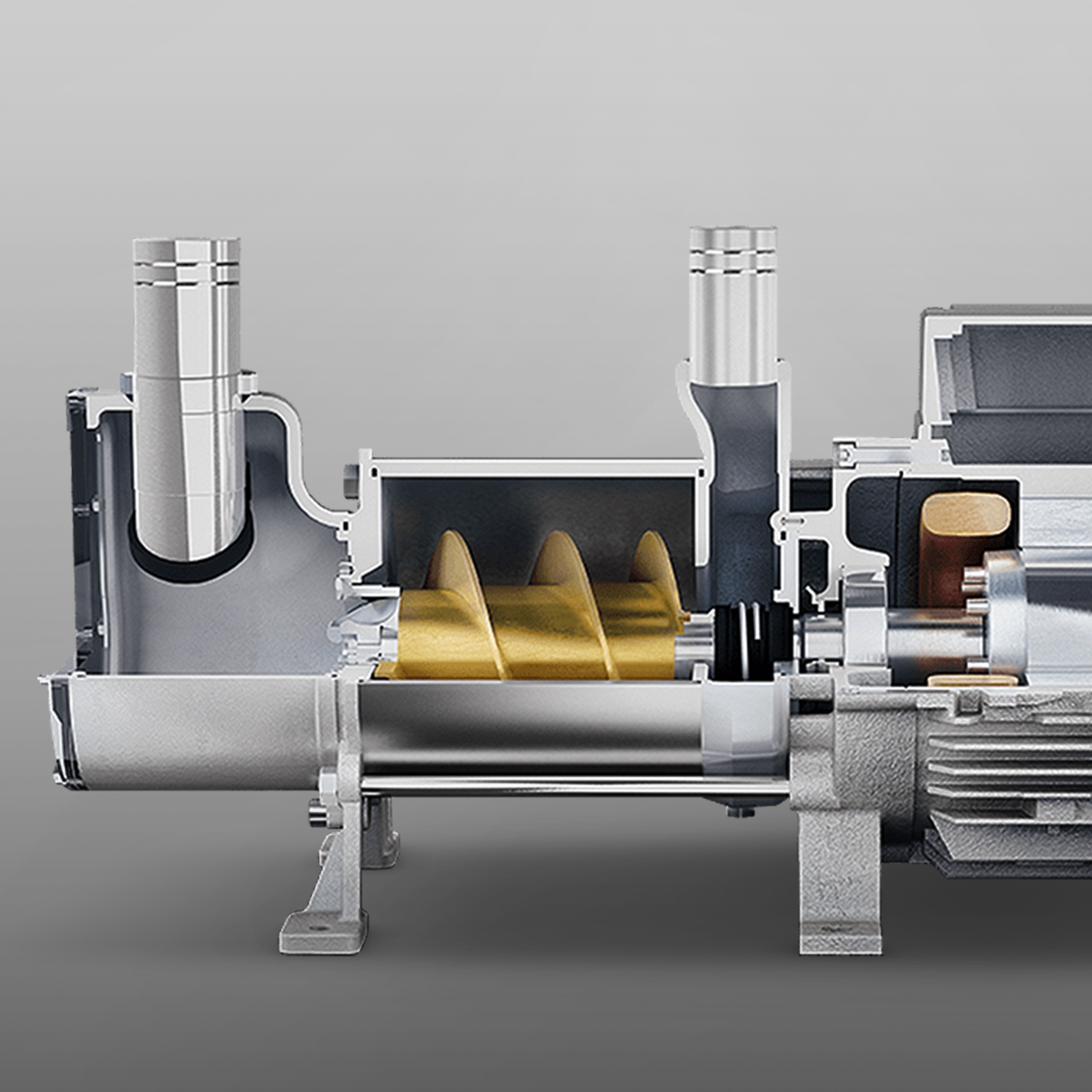

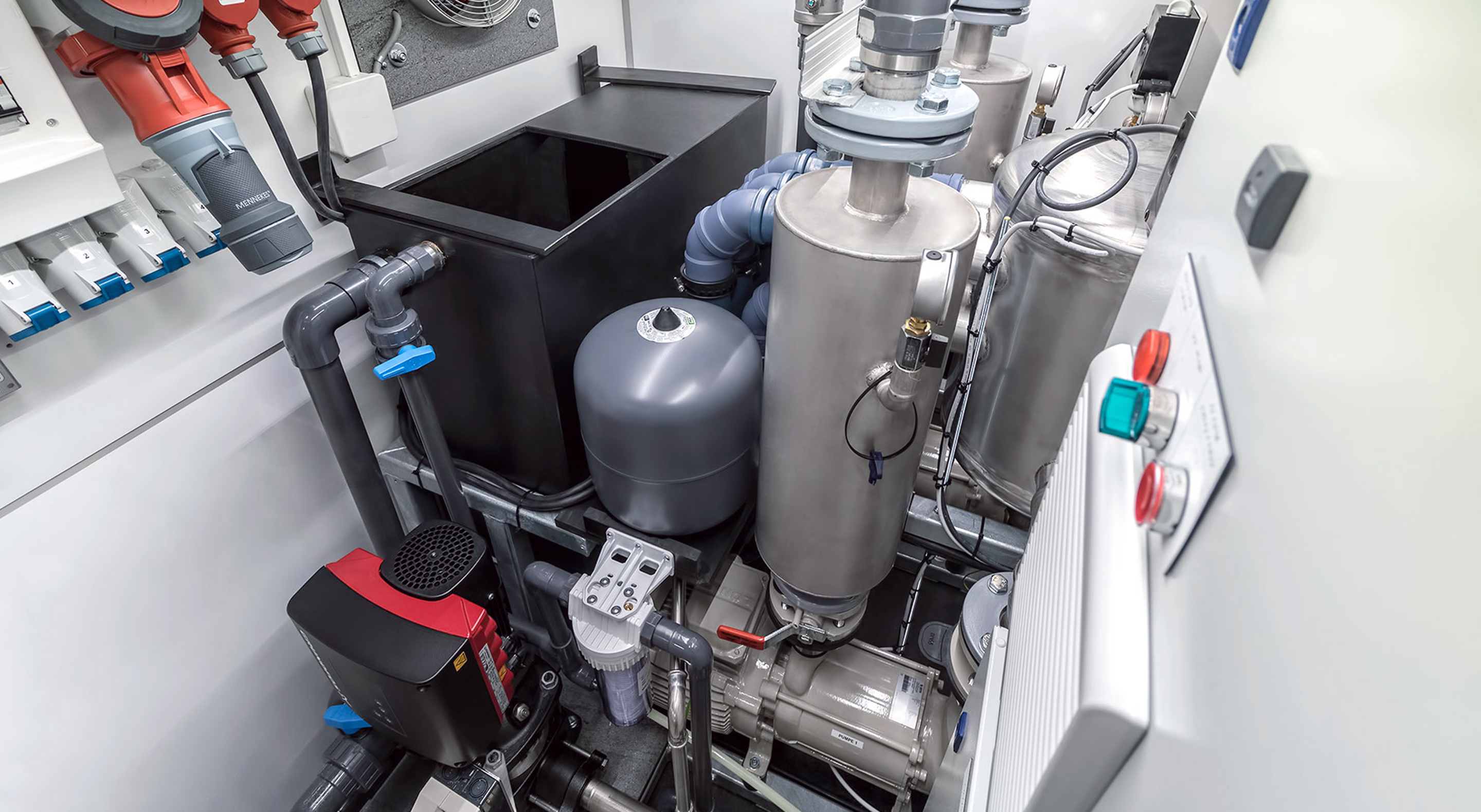

The pump station features the unique Vacuumarator™ pump from Jets™. It creates vacuum, macerates sewage and discharges in one single-pass operation. The vacuumarator™ pump is the most compact and reliable vacuum generator available for sanitary systems. It is highly efficient in transporting any combination of black and grey water under vacuum.

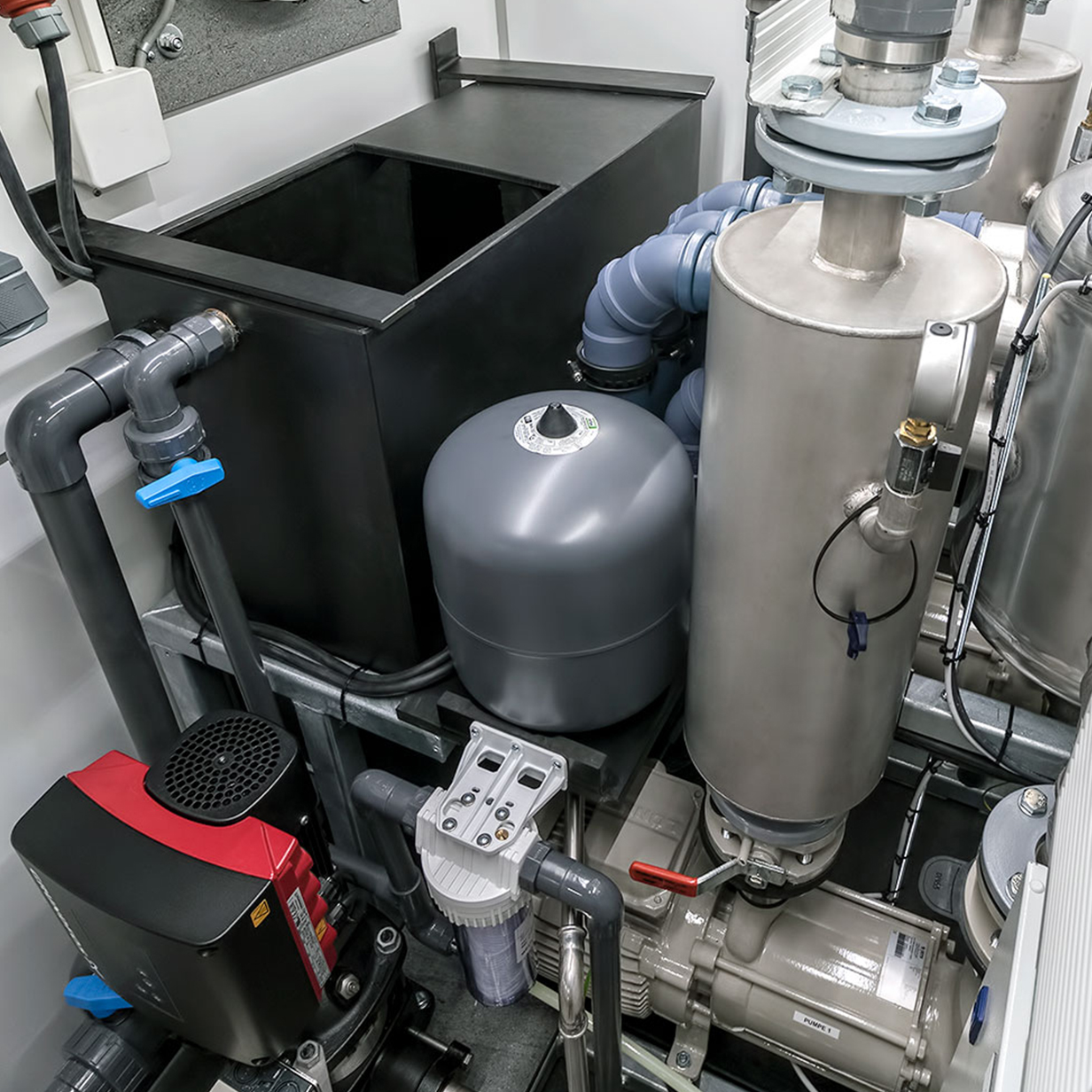

The pump station comes fully equipped with category 5 backflow protection. It utilizes a valve combined with a 50/170 L break tank to achieve this. Because of this it can be connected to any water source anywhere in the world including locations with strict water regulations.
Item 1
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Suspendisse varius enim in eros elementum tristique. Duis cursus, mi quis viverra ornare, eros dolor interdum nulla, ut commodo diam libero vitae erat.
Item 2
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Suspendisse varius enim in eros elementum tristique. Duis cursus, mi quis viverra ornare, eros dolor interdum nulla, ut commodo diam libero vitae erat.
Item 3
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Suspendisse varius enim in eros elementum tristique. Duis cursus, mi quis viverra ornare, eros dolor interdum nulla, ut commodo diam libero vitae erat.
Small
- Size / Weight: TBA, 300 kg
- Capacity: 8–16 toilets, 320–640 flushes per hour
- Vacuum Pump: 1 × MB45
- Break Tank: 50 L
- Water Pump: 40 L/min, 10 bar
- Lighting: Bright LED
- IOT Controller: 1
- Electric Switchboard: Small
- Power: CEE 230 V 16 A inlet, 2 × CEE 230 V 16 A outlets
- Voltage / Fuse: 230 V, 16 A
- Maximum Power Consumption: 3,680 W
- Water: 1 × 1" Camlock inlet, 2 × ¾" Camlock outlets
- Vacuum: 1 × 3" Storz-B inlet, 2 × 3" Storz-B outlets
- Sewage Discharge: 1 × 3" Storz-B pressure line
- Category 5 Protection: Yes
- Roof: XPS insulated roof with premium fiberglass cladding and anodized aluminum profiles
- Walls: XPS insulation with premium fiberglass cladding and anodized aluminum profiles
- Floor: Scratch-resistant polyurea anti-slip coating
- Frame: Heat-galvanized steel frame with forklift pockets on all sides
Medium
- Size / Weight: 120 × 230 cm (external), 1,500 kg
- Capacity: 35–40 toilets, 1,600–1,800 flushes per hour
- Vacuum Pump: 1 × MB95
- Break Tank: 170 L
- Water Pump: 200 L/min, 3.5 bar
- Lighting: Bright LED
- IOT Controller: 1
- Electric Switchboard: Large
- Power: CEE 400 V 32 A inlet, 4 × CEE 230 V 16 A outlets
- Voltage / Fuse: 400 V, 32 A
- Maximum Power Consumption: 38,400 W
- Nominal Internal Power Consumption: 19,200 W
- Water: 1 × 1" Camlock inlet, 4 × ¾" Camlock outlets
- Vacuum: 1 × 3" Storz-B inlet, 6 × 3" Storz-B outlets
- Sewage Discharge: 1 × 3" Storz-B pressure line
- Category 5 Protection: Yes
- Roof: One-piece molded roof with an even bend for optimal strength and water drainage
- Walls: XPS insulated composite box with premium fiberglass cladding
- Floor: Ultra-abrasion-resistant polyurea anti-slip coating
- Frame: Heat-galvanized steel frame with forklift pockets on all sides
Large
- Size / Weight: 150 × 200 × 200 cm (external), 1,800 kg
- Capacity: 80 toilets, approximately 3,000 flushes per hour
- Vacuum Pump: 2 × MB95
- Break Tank: 170 L
- Water Pump: 200 L/min, 3.5 bar
- Lighting: Bright LED
- IOT Controller: 1
- Electric Switchboard: Large
- Power: CEE 400 V 63 A inlet, 4 × CEE 230 V 16 A outlets
- Voltage / Fuse: 400 V, 63 A
- Maximum Power Consumption: 75,600 W
- Nominal Internal Power Consumption: 31,200 W
- Water: 1 × 1" Camlock inlet, 4 × ¾" Camlock outlets
- Vacuum: 1 × 3" Storz-B inlet, 6 × 3" Storz-B outlets
- Sewage Discharge: 1 × 3" Storz-B pressure line
- Category 5 Protection: Yes
- Roof: One-piece molded roof with an even bend for optimal strength and water drainage
- Walls: XPS insulated composite box with premium fiberglass cladding
- Floor: Ultra-abrasion-resistant polyurea anti-slip coating
- Frame: Heat-galvanized steel frame with forklift pockets on all sides
Specifications
