Sanitrax Tech Module
0
Pumps
2
0
Length
2.55m
0
Width
1.2m
0
Height
1.45m
Pumps
2
The heart of the Satelite’s Vacuum Technology

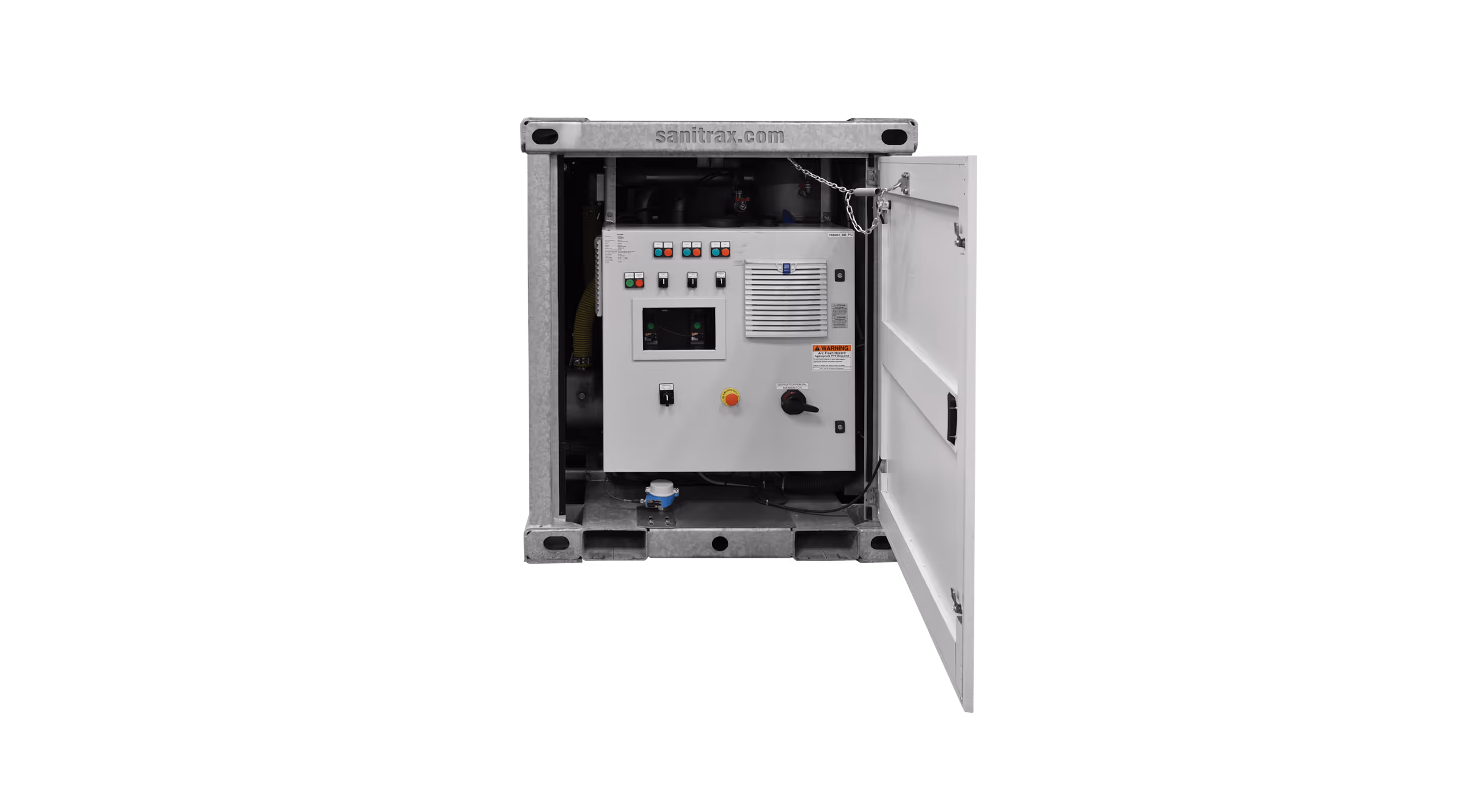

The Tech Module is the brain of the Satellite’s Sanitrax system. The Sanitrax-designed electronic module has sensors that measure the connected toilets’ vacuum levels and waste piping system and is fully autonomous.

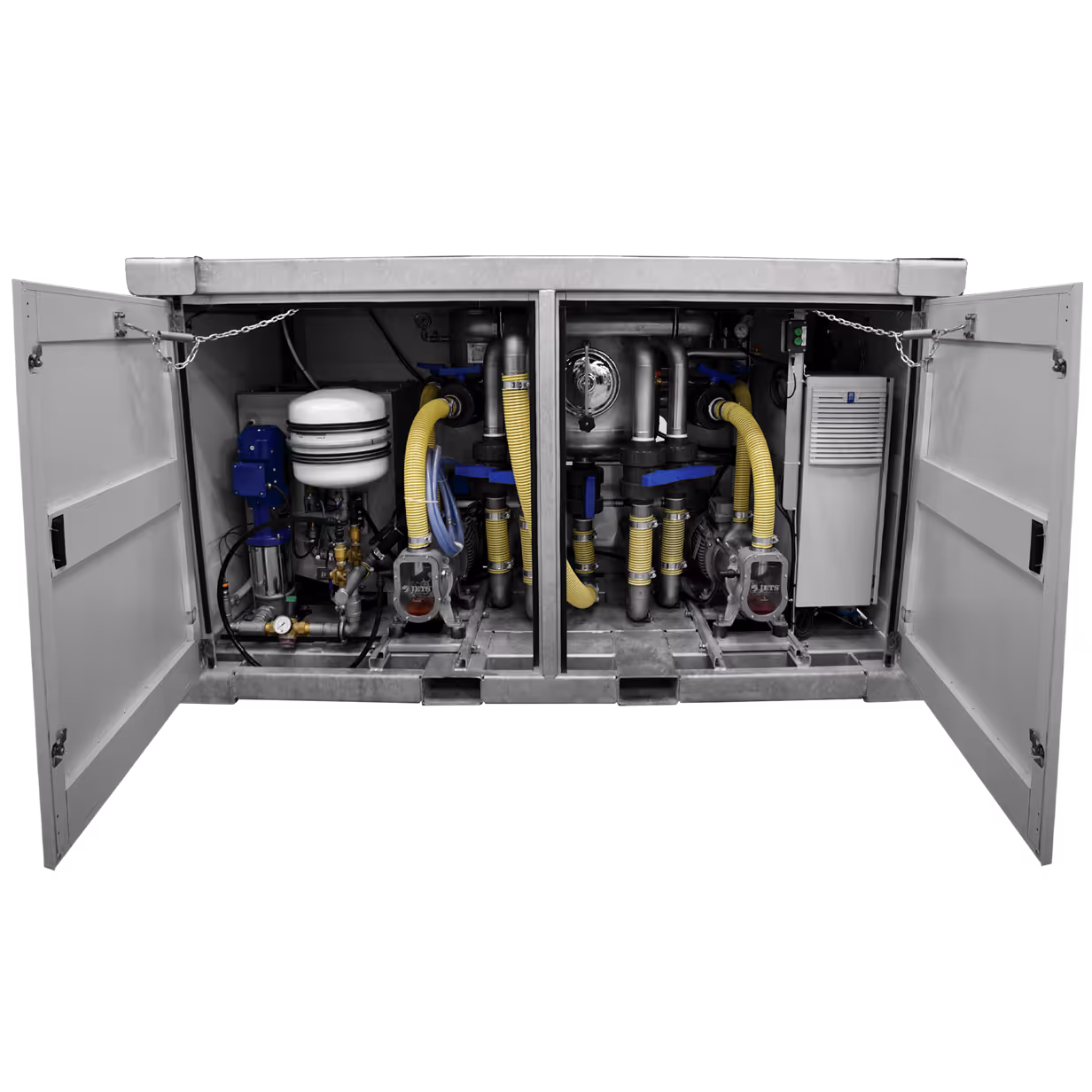

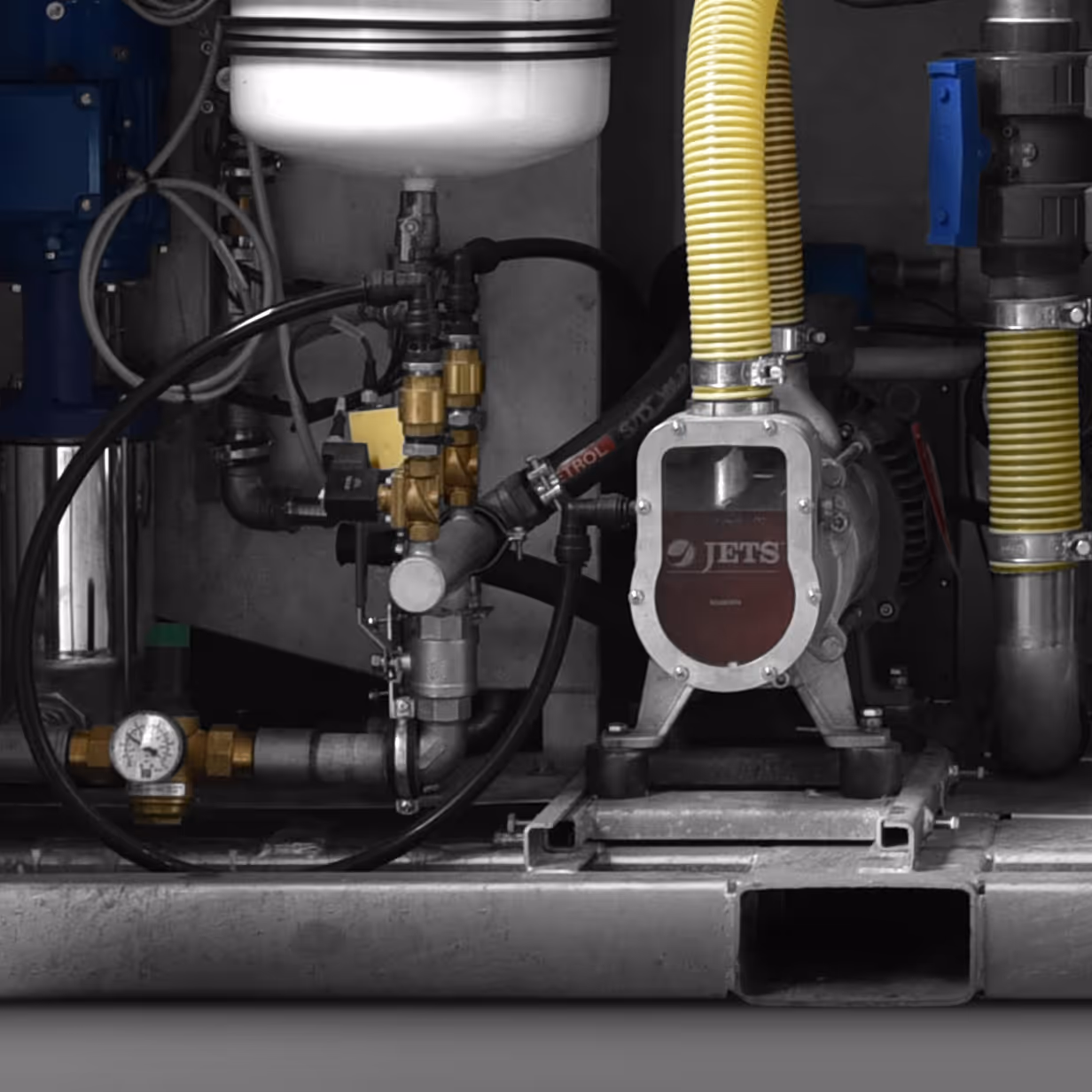

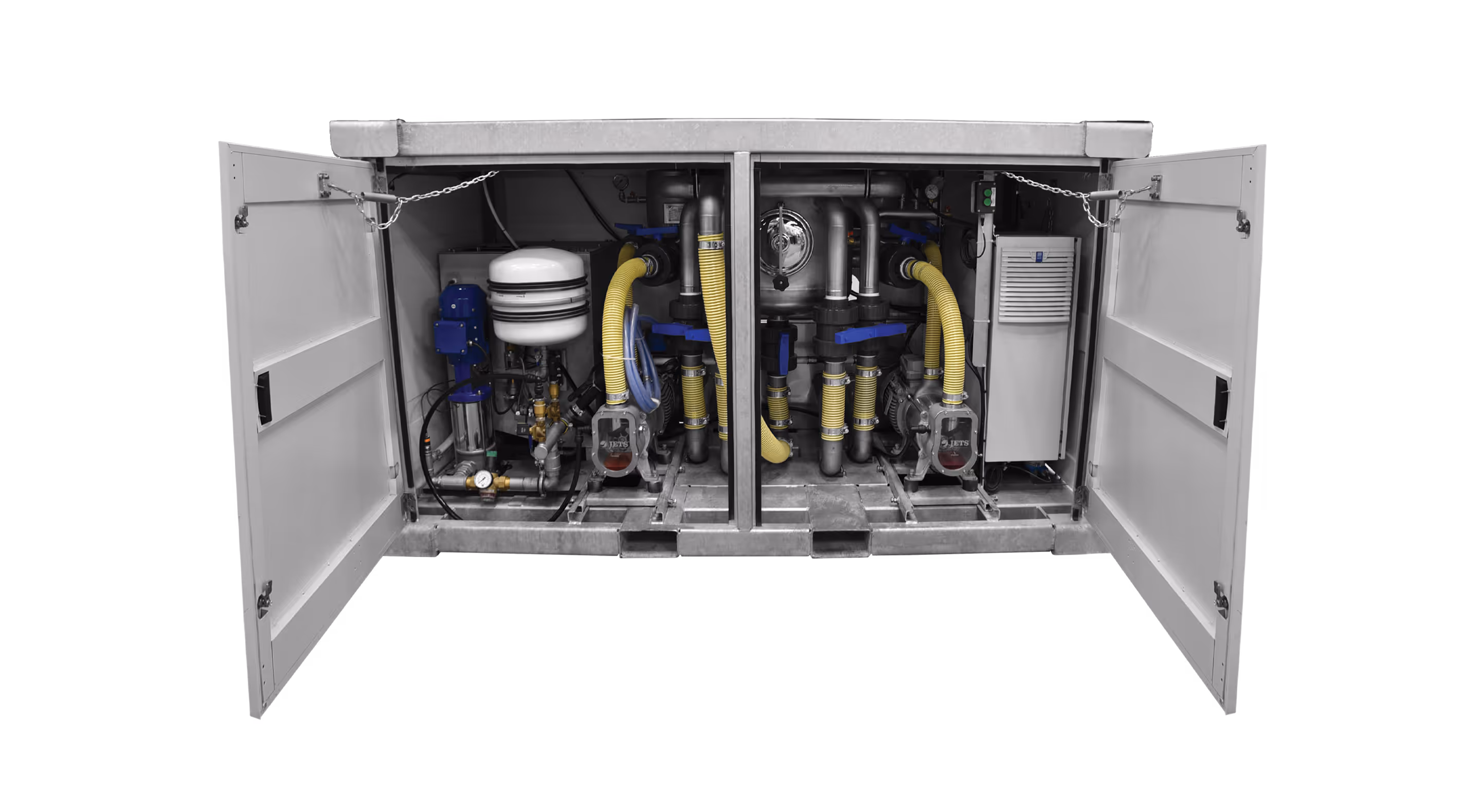

Fitted with a twin pump setup, the Tech Module not only takes care of transporting the waste away from the toilets, but also the supply of fresh water for flushing.
Built to run autonomously, a dedicated app allows the operator to remotely monitor status and operations of the Tech Module when used in combination with an optional smart LED. In addition, data is stored on a cloud for later analysis by operators to ensure that the system is operating correctly.

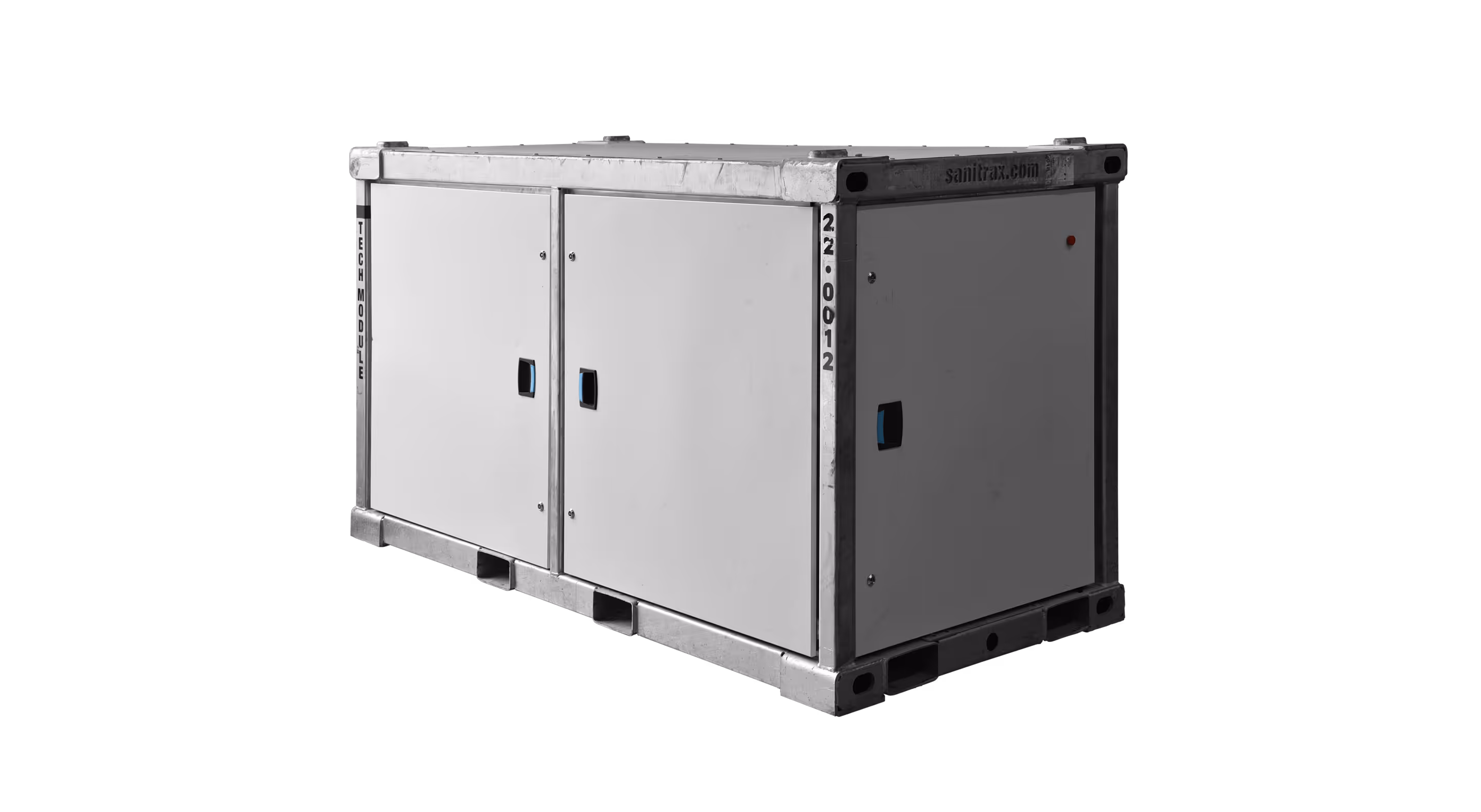

Designed on a durable collapsible galvanized steel frame for efficient transportation, set up and take down. High strength plastic interior makes it the most complete solution on the market.
The Tech Module transports the wastewater away from the toilets and is equipped with a professional water booster system which provides the connected toilets with fresh water to make them all flush nicely. Flushing with fresh water makes vacuuming all the waste and most of the odors out of the toilet stall resulting in a very hygienic toilet system!
Easy and cheap to transport, quick and easy to set up, sustainable and easy to expand. The attractive, sturdy and very easy-to-use modules are the ideal solution!
Item 1
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Suspendisse varius enim in eros elementum tristique. Duis cursus, mi quis viverra ornare, eros dolor interdum nulla, ut commodo diam libero vitae erat.
Item 2
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Suspendisse varius enim in eros elementum tristique. Duis cursus, mi quis viverra ornare, eros dolor interdum nulla, ut commodo diam libero vitae erat.
Item 3
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Suspendisse varius enim in eros elementum tristique. Duis cursus, mi quis viverra ornare, eros dolor interdum nulla, ut commodo diam libero vitae erat.
- Power: 200/400/480V, 32/63AMP

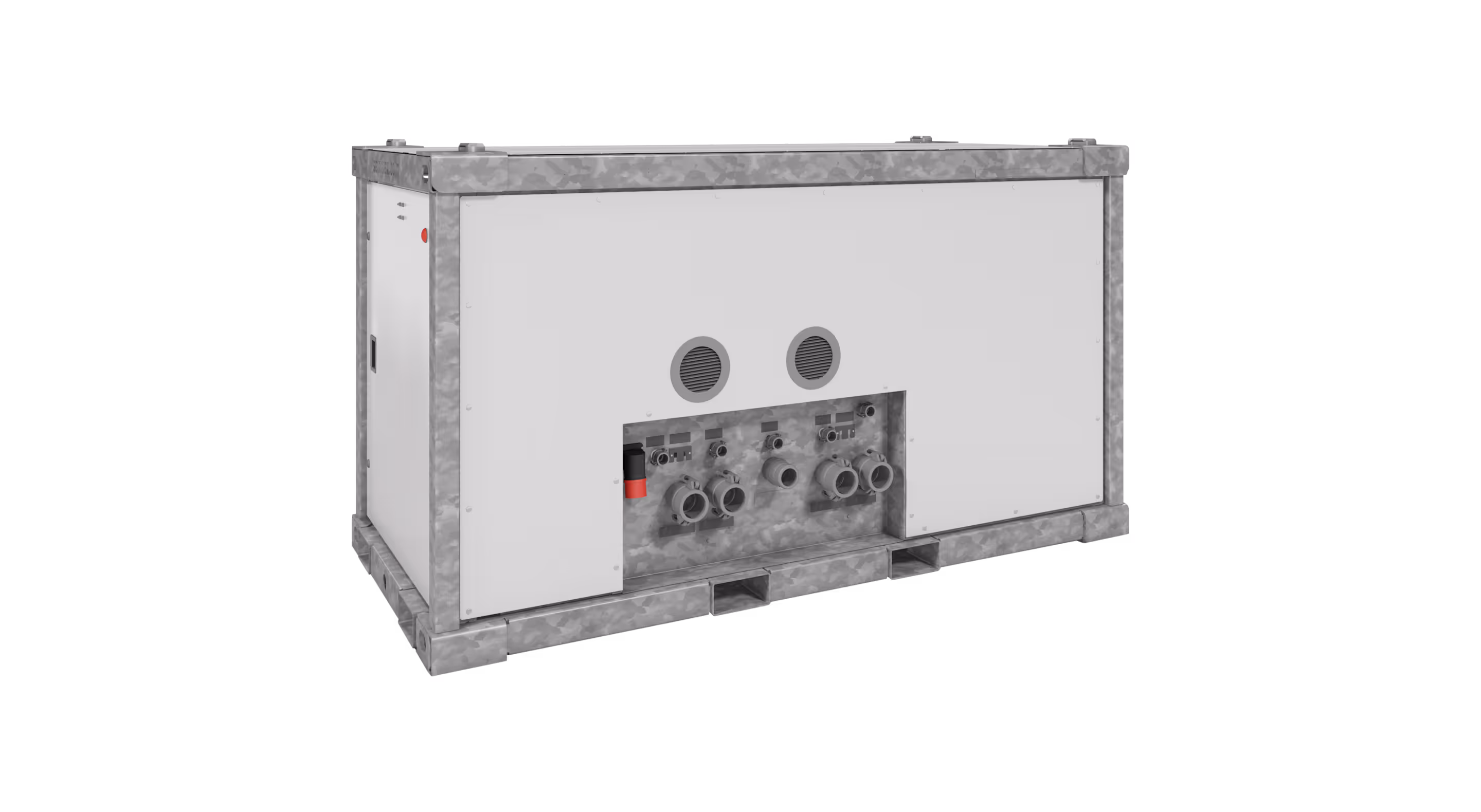

- Water Supply Connection: 3/4” M Camlock
- Waste Water Drainage Connection: 2.5” M Camlock
- Waste Water System: Vacuum
- Vacuum Pressure in Bar: -0.3 to -0.6
- Vacuum Pressure in Psi: -4.3 to -8.7
- Water Pressure in Bar: 3 to 5
- Water Pressure in Psi: 40 to 90
- Shipping Container: 10 modules
- Transport: 24 modules on a standard truck/trailer combination

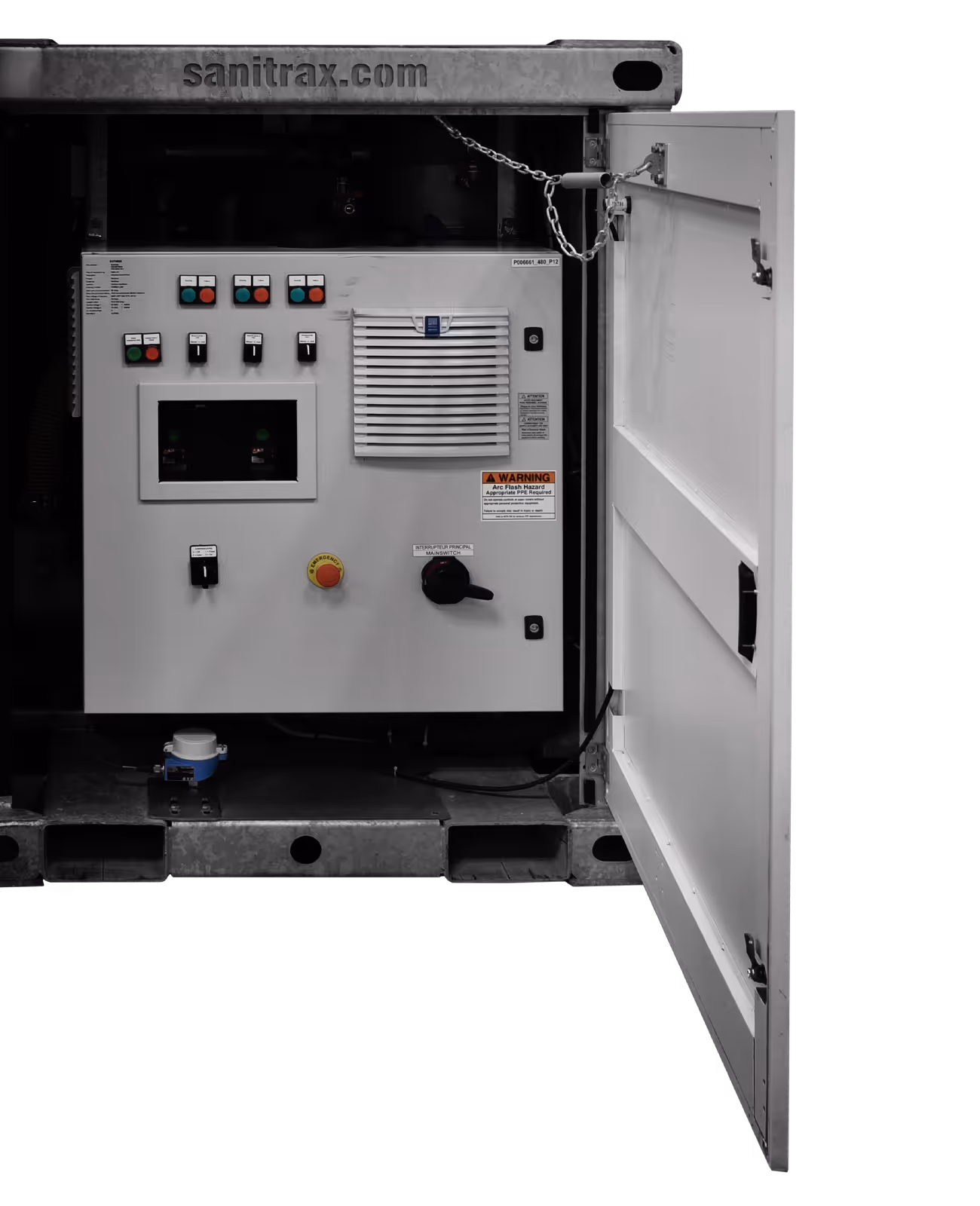

Specifications
These products may contain chemicals known to the State of California to cause cancer and or/birth defects or other reproductive harm.
