See all products
Service Units
MAL300
Height
0
Length
1400 mm
Width
0
Width
1710 mm
Depth
0
Height
1500 mm
Weight
0
Volume
1130 L
Length
1400 mm
Maximum Flexibility, Minimal Weight

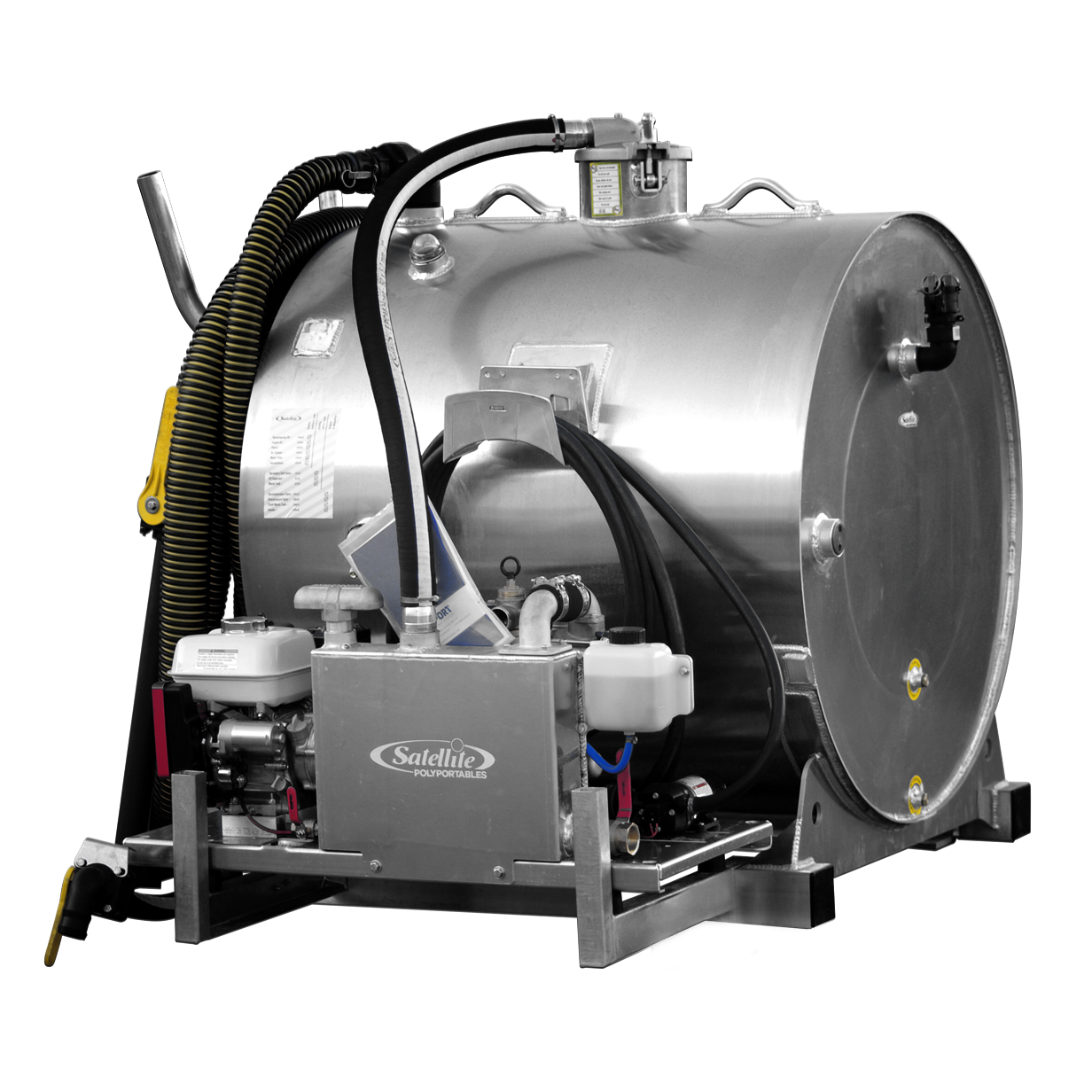

The Satellite Industries MAL300 is the ideal service module for those who want to adapt an existing delivery (or flat bed) truck or trailer to do servicing. By weighing under 1000kg fully loaded, it can be put on virtually all trucks without going over legal limits. Offering greater flexibility to any fleet and being able to use driver’s with only permit B makes the MAL300 the best choice on the market as an entry level module.
CONSTRUCTION
- Tank-in-tank, 2 chambers
- 2 Zinc anodes
- Easy-Fix mounting system
Features
- Primary Ball Valve
- Manhole 8”
- Secondary Ball Valve with drain
- Oil separator with drain
- Heavy duty UV-resistant hoses
- 12V Battery
- External oil tank for vacuum pump
- 2 Sight glasses for waste water level
- 3” Waste inlet (with 2” connector)
- Sight tube for fresh water level
- 11/4” Bucket-fill
- 3” waste outlet with 3” Camlock coupler (male)
- Dump hose
No items found.
- Dimensions: 1400 x 1710 x 1500 mm (L x W x H)
- Dimensions (MAL300HP only): 1400 x 1650 x 1500 mm (L x W x H)
- Dimensions footprint: 1500 x 1800 mm (L x W)
- Dimensions footprint (MAL300HP only): 1500 x 1750 mm (L x W)
- Total Volume: 1130 L
- Waste Capacity: 750 L
- Clean Water Capacity: 380 L
- Dry Weight* MAL300: 280 kg
- Dry Weight* MAL300LP: 290 kg
- Dry Weight* MAL300HPe: 295 kg
- Dry Weight* MAL300HP: 305 kg
- * Dry weight is based on calculation of all components seperately. They may vary depending on the service module configuration.
Specifications
