Service Units
MAL650
Height
0
Length
2250 mm
Width
0
Width
1770 mm
Depth
0
Height
1750 mm
Weight
0
Volume
2450 mm
Length
2250 mm
Maximum Productivity.

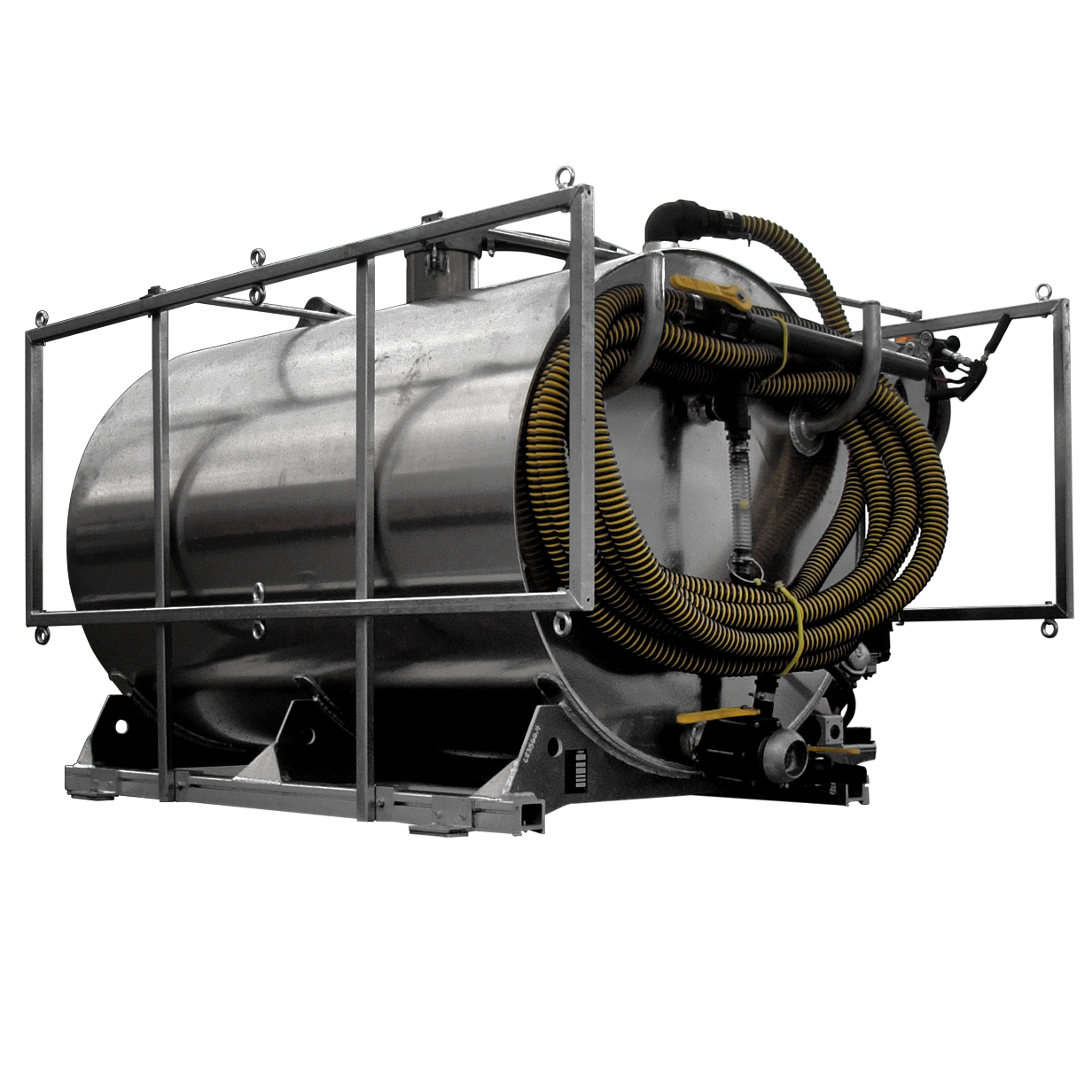

With a total volume of 2450 litres, the MAL650 is an ideal module to mount on a 5.5t + truck. Its waste capacity of no less then 1600 litres will be sufficient for most daily routes and come in handy on events as well. We can supply the MAL650 with a gasoline engine or hydraulic drive.
CONSTRUCTION
- Tank-in-tank, 2 chambers
- 2 Zinc anodes
- Easy-Fix mounting system
Features
- Primary Ball Valve
- Manhole 8”
- Secondary Ball Valve with drain
- Oil separator with drain
- Heavy duty UV-resistant hoses
- 12V Battery
- External oil tank for vacuum pump
- 2 Sight glasses for waste water level
- 3” Waste inlet (with 2” connector)
- Sight tube for fresh water level
No items found.
- Dimensions: 2250 x 1850 x 1750 mm (L x W x H)
- Dimensions (MAL650HP only): 2250 x 1770 x 1750 mm (L x W x H)
- Dimensions footprint: 2350 x 1950 mm (L x W)
- Dimensions footprint (MAL650HP only): 2350 x 1870 mm (L x W)
- Total Volume: 2450 L
- Waste Capacity: 1600 L
- Clean Water Capacity: 850 L
- Dry Weight* MAL650: 460 kg
- Dry Weight* MAL650LP: 470 kg
- Dry Weight* MAL650HPe: 475 kg
- Dry Weight* MAL650HP: 485 kg
- * Dry weight is based on calculation of all components seperately. They may vary depending on the service module configuration.
